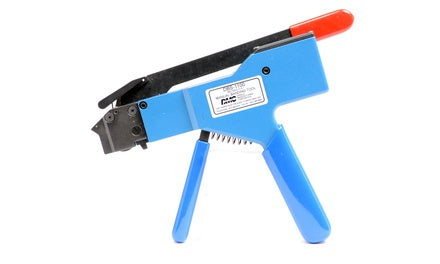

DBS-1100 - .250 Wide Two-step Band Application Tool M81306/2-01A

3 reviews


Lead Time:
Special Order



  • Hand Operated

EMI/RFI Band Application System for M85049/128 Shield Termination Bands.

DMC’s Two-Step Banding Tools are designated for M85049/128- 1, M85049/128-2, M85049/128-5 and M85049/128-6 “welded buckle” bands. These tools tension and cut the band and leave an extended cut off tab. The second step provides an extra level of security by utilizing a roll-over tool to bend the cut-off tab over a full 180 degrees in a second operation.

DBS-1100 (M81306/2-01A) .250 Wide Band Tool:
• Size:  1.38” x 5.5” x 7.5”
• Weight:  1.4 lbs.
• Tension Range:  140–160 lbs.
• Cut-off blade are replaceable with DBS-1100-7

A pneumatic version of this tool is available, P/N:  PBT1100.

Works with the DBS-R03 (M81306/2-01C) Roll Over Tool for .250 Wide Bands.

Verification of Two-Step EMI/RFI Band Tools:

DMC’s Two-Step Band Application Tools may be adjusted and verified to insure correct band tension. In order to make this operation simple and efficient for field use, DMC designed
and patented a compression fixture system (DBS-CG2A) which uses a Go/No-Go Gage to measure the tool tension.

The DBS-CG1 Laboratory Calibration Instrument will allow the operator to measure the exact tension produced by the tool.

A free standing holding fixture is available (DBS-CG1-F) to aid the calibration process by securing the DBS-CG1 and banding
tool in place. The DBS-CG1-F holding fixture secures the banding tool in place during calibration. This fixture only works with the Two-Step Tools and DBS-CG1 Calibration Instrument (Banding tools and DBS-CG1 are sold separately)

Specification Value
Shipping Weight 4.5 LBS
Military Part Number M81306/2-01A
National Stocking Number 5120013755307
