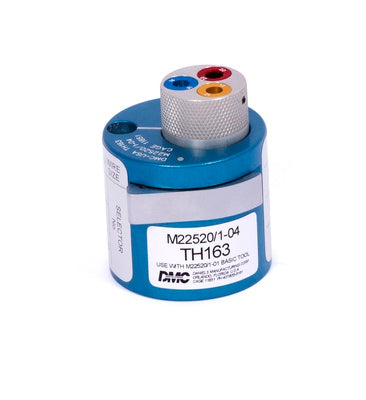

TH163 - Turret Head M22520/1-04

2 reviews


Lead Time:
Special Order



  • Qualified to AS22520/1*

Qualified to MIL-DTL-22520/1* and AS22520/1*


M22520/1-04 (TH163) turret head is used with the M22520/1-01 (AF8) tool frame and adapts the tool frame to a particular application. The data plate on each turret head designates which contacts the turret accommodates and suggested selector depth settings for the wire size being used.

Can also be used with these DMC Crimp Tools:

WA27F Pneumatic Crimp Tool Frame
AFE8B Battery Crimp Tool Frame

Specification Value
Shipping Weight 0.25 LBS
Military Part Number M22520/1-04
National Stocking Number 5120013358836
National Stocking Number 5120000167582


Customer Reviews
4.0 Based on 2 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
Rosario T.
Miami, US
Works just like it’s supposed to!

It does exactly what you say it does. It does it well. Well made and sturdy.

Maria P.
Chicago, US
great value, well made tool

Just what I needed for my crimp tool. Will need to buy other sizes also
